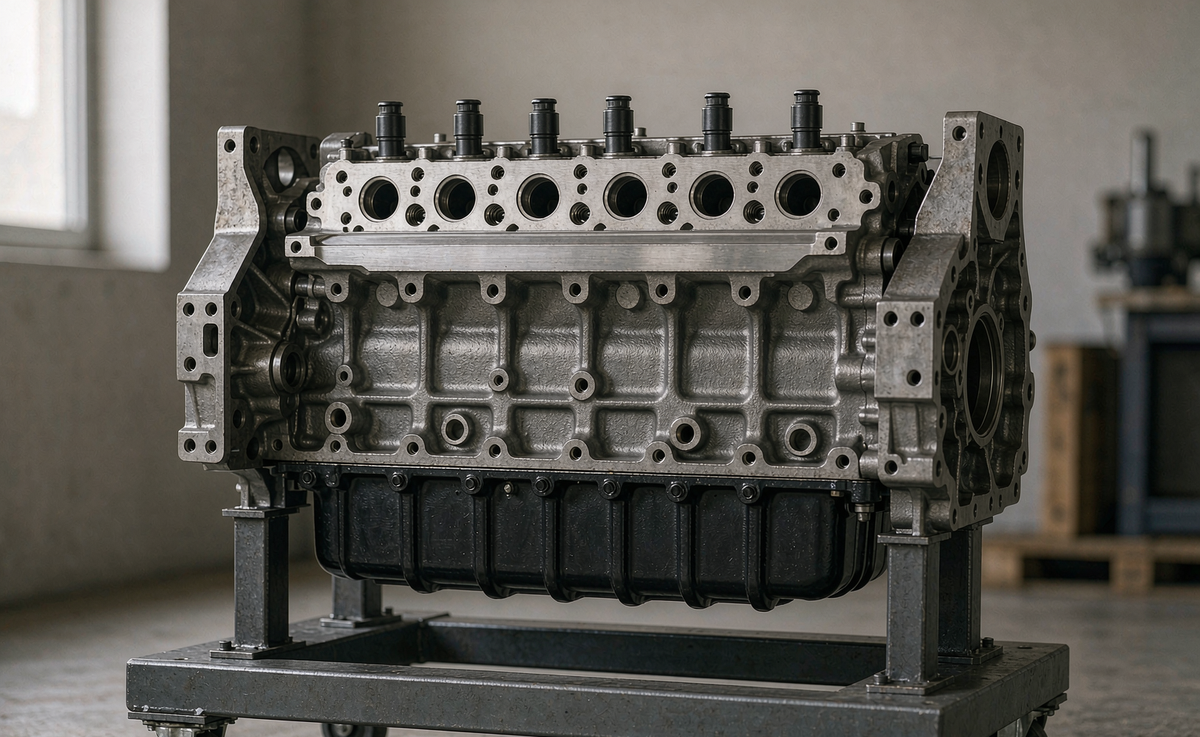

What a Cummins ISX engine assembly actually includes
When a listing says “ISX engine assembly,” it can describe three very different products: a bare block, a long block, or a fully dressed drop-in engine. The difference is not cosmetic. It changes what you still have to source, what your shop has to install, and how the warranty will be honored if something fails in the first thousand hours.
This Cummins ISX engine assembly buying guide covers the checks that decide whether an assembly was rebuilt to a specification or merely painted to sell. Before comparing prices, confirm which category the seller is actually offering.
| Component | Bare block | Long block | Fully dressed |
|---|---|---|---|
| Cylinder block and liners | Yes | Yes | Yes |
| Crankshaft and main bearings | No | Yes | Yes |
| Camshaft and bushings | No | Yes | Yes |
| Cylinder head | No | Usually | Yes |
| Oil pan and valve cover | No | Usually | Yes |
| Turbocharger | No | No | Sometimes |
| Fuel injectors | No | Loaded head only | Yes |
| ECM | No | No | Rarely |
| Exhaust manifold | No | No | Sometimes |
A long block is the most common configuration for a rebuild or replacement job, because it carries the machining-heavy components while letting you reuse the accessories already on the truck.
The four ISX generations you will actually find
ISX15 production ran from 2002 until the platform was succeeded by the X15, and the assembly changed substantially at each emissions step. The ECM generation is usually written as a CM number, and it is the fastest way to sort listings into groups that can and cannot interchange.
| Build | Emissions step | Typical years | Assembly notes |
|---|---|---|---|
| ISX15 CM570 | EPA 2002 | 2002-2004 | No DPF, no SCR. Simplest plumbing, most interchangeable with early rebuilds. |
| ISX15 CM871 | EPA 2007 | 2007-2009 | DPF equipped, different piston bowl and cam profile from CM570. |
| ISX15 CM2250 | EPA 2010 | 2010-2013 | SCR equipped, higher injection pressure, revised head casting. |
| ISX15 CM2350 | GHG14 / GHG17 | 2013 onward | Most electronic content, different injector and aftertreatment control. |
| ISX12 | EPA 2010 onward | 2010 onward | 11.9 L, shorter deck height. Not interchangeable with ISX15 parts. |
A frequent and expensive mistake is treating the model badge as the identifier. An ISX15 from 2007 and an ISX15 from 2012 share a displacement and almost nothing else in the rotating assembly, the head, or the fuel system.
Six checks that separate a properly rebuilt assembly from a painted one
Photographs tell you almost nothing about the internal condition of an engine assembly. Ask for documentation on each of the following before money moves.
1. Cylinder liner protrusion and counterbore condition
Liner protrusion must be measured at four points per cylinder and recorded. A block that has been overheated often shows counterbore fretting, and a shop that simply drops in new liners without cutting the counterbores will produce an assembly that leaks coolant within a season. Ask for the measurement sheet, not an assurance.
2. Crankshaft journals and size codes
A crankshaft that has been ground to the next undersize is acceptable if the correct bearings are fitted and the size is stamped and documented. Problems start when a journal is ground but the matching bearing is not, or when a reconditioned crank is installed with used bearings. The size code on the crank should match the bearing part number on the invoice.
3. Camshaft lobes and bushings
Worn cam bushings show up as low oil pressure at idle long after the assembly is installed, and they cannot be inspected with the engine in the frame. Request lobe lift measurements, and confirm whether the bushings were replaced or only reamed.
4. Cylinder head: pressure test, valve recession, injector cups
A loaded head should come with a pressure test record and valve recession figures. Injector cups deserve specific attention on ISX engines: a cup that is not sealed correctly lets coolant into the fuel rail and produces a failure that is routinely misdiagnosed as an injector fault.
5. CPL code and serial verification
See the next section. This is the single most valuable check in the list.
6. Documentation set
A credible assembly ships with a build sheet, a dyno or run-in record, torque records for main and head bolts, and the warranty terms in writing. If the seller cannot produce a build sheet, the assembly was likely assembled to a price rather than to a specification.
Why the CPL code matters more than the model year
The Critical Parts List is Cummins’ own record of exactly which components were released for a given engine build. Two ISX15 CM2350 engines built for different applications can carry different pistons, different injectors, a different turbocharger and a different camshaft, while sharing the same badge on the valve cover.
When ordering an assembly, quote the CPL from the original engine plate rather than the model year. If you are replacing an engine in a truck that has already been through a rebuild, verify the CPL against the block casting number as well, because plates and engines do get separated.
What moves the price of an ISX assembly
Buyers usually compare the headline figure and ignore the four items that decide the real cost:
- Core charge. Commonly 15-25% of the assembly price, refundable only if the core passes inspection. Cracked blocks, spun bearings and missing components void the refund.
- Head configuration. A bare head versus a loaded head with injectors can swing the total by more than the price of the injectors themselves.
- Warranty length and labor allowance. Twelve months with no labor allowance is worth far less than twelve months with a stated labor contribution.
- Freight and crating. A dressed ISX15 is a heavy, palletized shipment. Return freight on a rejected core is frequently the buyer’s cost unless it is negotiated in writing.
Warranty and core terms to negotiate before you order
Three clauses decide whether a warranty is usable in practice. First, the labor allowance: ask for a stated dollar or hour cap per claim. Second, the inspection standard for the core: ask what specifically disqualifies a core, in writing. Third, the claim process: ask who authorizes teardown, because most disputes begin when a shop opens an engine before the seller has seen it.
FAQ
Is an ISX15 long block the same as a complete engine assembly?
No. A long block includes the block, crank, cam, pistons, liners and usually the head, but not the turbocharger, ECM, exhaust manifold or accessories. A complete assembly is dressed and closer to a drop-in replacement.
Can a CM871 assembly be fitted into a CM2250 truck?
Mechanically it may physically fit, but the electronic and aftertreatment calibration will not match. Treat cross-generation swaps as a controls project, not a parts swap, and confirm with the ECM calibration before committing.
What break-in procedure should be used?
Follow the procedure supplied with the assembly, which normally covers initial oil prime, a no-load run period, retorque checks where specified, and an early oil and filter change. Do not extend the first service interval on a fresh rebuild.
Does a remanufactured assembly include an ECM?
Rarely. Most reman assemblies are supplied without electronics, and the original ECM is reused or replaced separately. Confirm this before ordering, because an ECM matched to a different CPL will need recalibration.
Sourcing checklist
- CPL code and block casting number confirmed and photographed
- ECM generation (CM570 / CM871 / CM2250 / CM2350) matched to the vehicle
- Build sheet and torque records supplied
- Liner protrusion and journal size measurements supplied
- Head pressure test and injector cup sealing confirmed
- Warranty length, labor allowance and core criteria in writing
- Freight, crating and core return cost agreed before dispatch
An ISX assembly is a long-life purchase, and the difference between a good one and a costly one is almost never visible in a listing photo. It is visible in the paperwork. Any Cummins ISX engine assembly buying guide ends the same way: ask for the build sheet first, and a seller who has it will send it without being asked twice.
