Description

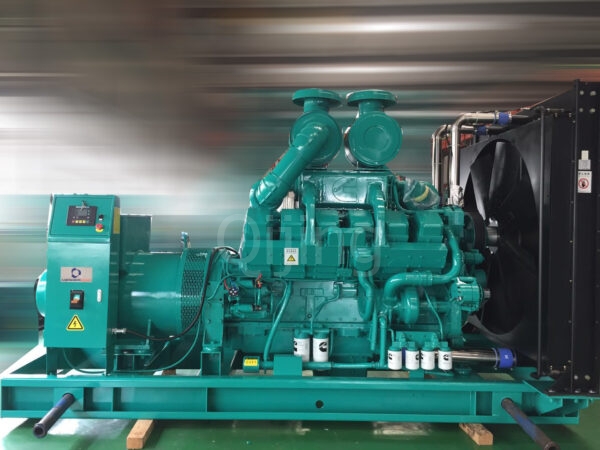

CCEC KT38-GA (1500 RPM) Generator Drive Engine is 12-Cylinder 60° Vee, 38 liters (2300 in3) Four-Strokes Engine with 159 mm (6.25 in) Bore and 159 mm (6.25 in) Stroke. KT38-GA Generator Drive Engine Equipped with CMI PT Fuel System, Comes with Turbocharged. The Standby Power for 50 Hz Generator Set (1500 RPM) of CCEC KT38-GA Generator Drive Engine is 953 HP (711 kW). The Prime Power for 50 Hz Generator Set (1500 RPM) of CCEC KT38-GA Generator Drive Engine is 867 HP (647 kW).
ENGINE PARAMETERS
| Manufacturer / Model | Cummins KTA38-G2B, 4-cycle |
| Air Intake System | Turbo, air / water cooling |
| Fuel System | PT-type fuel pump, EFC |
| Cylinder Arrangement | 12 in “V” |
| Engine Displacement | 37.8 L |
| Bore*Stroke | 159*159(mm) |
| Compression Ration | 14.5：1 |
| Rated Speed (RPM) | 1500rpm |
| Engine Max Power | 789KW |
| Governor Type | Electronic |
FUEL CONSUMPTION
| 100% Load | 200 g/kw.h |
| 75% Load | 204 g/kw.h |
| 50% Load | 204 g/kw.h |
LUBE SYSTEM
| Lube Consumption | ≤ 4 g/kw.h |
| Oil Pressure At Rated Speed | 297-483 kPa |
ALTERNATOR SPECIFICATIONS
| Number Of Phases | 3 |
| Connection Type | 3 phase 4 wires, Y type connection |
| Bearing Numbers | 1 |
| Power Factor (cosφ) | 0.8 (lagging) |
| Protection Grade | IP23 |
| Altitude | ≤ 1000 meters |
| Excitation Mode | Brushless, self exciting |
| Insulation Grade | H |
| Rated Capacity | 810 KVA |
| Alternator Efficiency | 94.4% |
