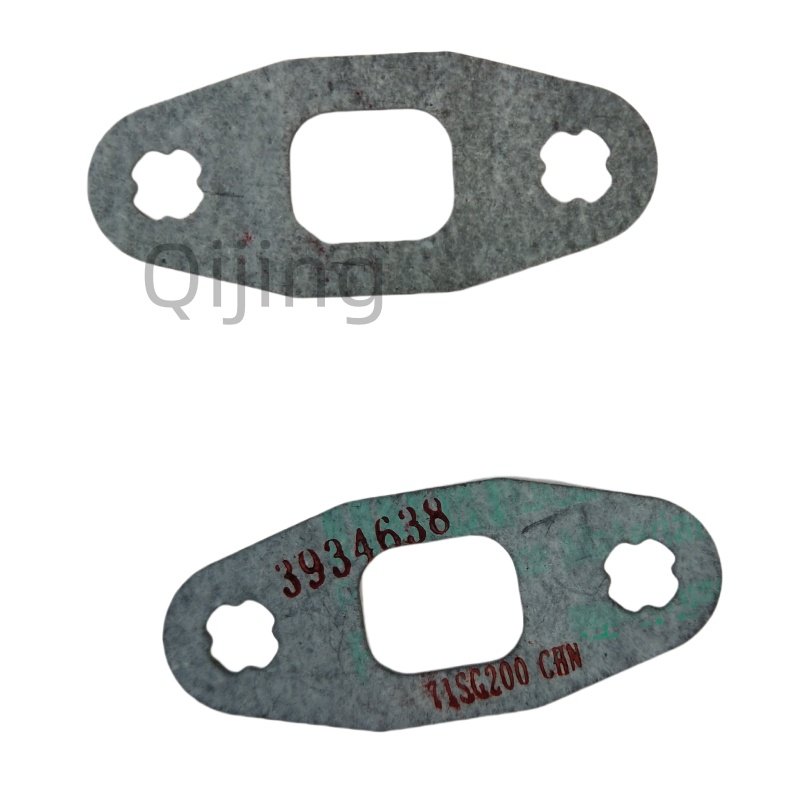

Cummins 3934638 Oil Return Gasket – Engine Expert Overview
Efficient sealing of engine oil return paths is vital in diesel engines to prevent oil leaks, ensure proper lubrication, and maintain turbocharger reliability. The Cummins 3934638 oil return gasket does exactly that — it seals the oil return or oil drain connection, typically between the turbocharger drain tube and the engine block or oil pan. Although this part may seem minor, a failed gasket can lead to oil leaks, smoke, low oil levels, and accelerated wear of critical components.
Understanding the Role of Part 3934638
The Cummins 3934638 is commonly referred to as an oil drain gasket or oil return pipe gasket. It’s engineered to provide a tight, leak‑free interface where engine oil drains back from the turbocharger or return line into the engine’s oil sump. Without a proper gasket, engine oil can drip or spray outward, causing engine bay contamination and potential mechanical issues.
Moreover, because turbochargers operate at high speeds and temperatures, oil seals and gaskets in the oil return path must withstand thermal cycling and vibration without failing. The 3934638 gasket is designed with materials and tolerances that support these extreme conditions, making it essential for both on‑highway and industrial diesel applications.
Applications and Compatibility
This oil return gasket fits a range of Cummins engines and turbo setups, especially in ISF2.8 and ISF3.8 series engines used in light trucks, vans, and commercial machinery. It also cross‑references other Cummins gasket numbers such as 3932444 and 5264571 in some applications, meaning it can serve as a replacement or equivalent OEM seal when performing engine maintenance or turbocharger servicing.
Because of its use in the oil return line, it’s often replaced whenever the turbocharger or return tube is serviced. That’s particularly true for engines that have accumulated high mileage or have experienced oil return leaks — common indications of seal wear or gasket failure.
Common Symptoms of Gasket Wear or Failure
Even though this gasket is small, symptoms of its degradation can be noticeable:
-
Oil leaks under the engine or turbocharger area, especially near the return line connection.
-
Visible oil residue on turbo parts or exhaust components, due to oil being expelled rather than properly drained.
-
Decreasing oil levels between changes, which may suggest oil escaping through compromised seals.
These signs often lead mechanics to inspect return line seals and gaskets during routine service.
Installation & Service Tips
When replacing the 3934638 oil return gasket, consider the following technical guidelines to ensure proper sealing and longevity:
-
Clean Mating Surfaces Thoroughly: Before installing the new gasket, remove any old gasket material, carbon, or sludge to ensure smooth contact surfaces.
-
Correct Orientation: Ensure the gasket aligns precisely with the oil return tube and engine block bolt pattern.
-
Torque to Specification: Use Cummins‑specified torque values when tightening bolts to prevent over‑compression or leaks.
-
Inspect Adjacent Hardware: Always check the condition of the turbocharger return tube and hardware for wear; bent or warped tubes can compromise sealing even with a new gasket.
Using proper sealants or gaskets with accurate thickness and composition enhances the reliability of the return path, especially in high‑temp engine environments.
Why Quality Gaskets Matter
Although inexpensive compared to major engine components, the oil return gasket plays a vital role in maintaining oil pressure integrity and clean engine operation. A reliable gasket like Cummins’s 3934638 ensures:
-
Consistent engine oil return without leaks.
-
Reduced risk of oil contamination on the engine exterior.
-
Improved overall engine performance and lower maintenance costs.
Whether you are performing a turbocharger overhaul, routine service, or preventive maintenance, installing a high‑quality oil return gasket aids in preserving engine health and uptime.
