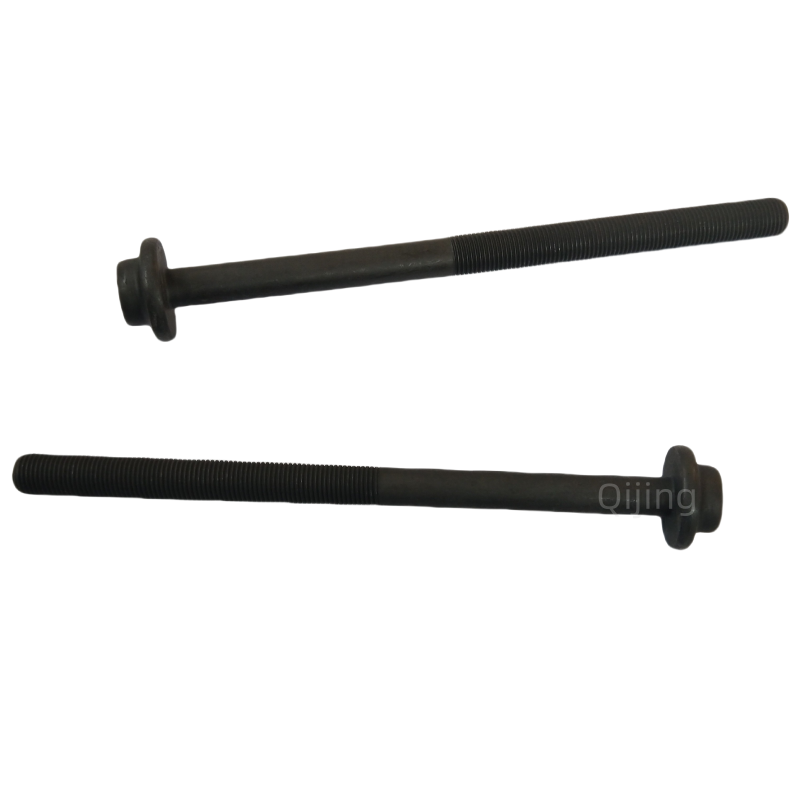

Cummins РМ40004372 Cylinder Head Bolt for ISX Engines

Cummins РМ40004372 Cylinder Head Bolt for ISX Engines

The Cummins РМ40004372 cylinder head bolt is a critical engine fastener designed to secure the cylinder head to the engine block on heavy-duty Cummins diesel engines. Engineered for high clamping force and extreme heat resistance, this bolt ensures long-term sealing integrity, prevents head gasket failure, and maintains optimal compression. Widely used in trucks, construction equipment, and generator engines, it is available in both OEM and premium aftermarket versions.

Category:

Description

Overview of the Cummins РМ40004372 Cylinder Head Bolt

The cylinder head bolt is one of the most structurally important fasteners in any internal combustion engine. The Cummins РМ40004372 bolt is specifically engineered to handle extremely high combustion pressure and thermal expansion inside heavy-duty diesel engines. Although it appears to be a simple threaded fastener, its metallurgy, hardness rating, and tensile load capacity determine whether the cylinder head can maintain sealing under full engine load.

Because head bolts are torque-to-yield (TTY) fasteners in most Cummins applications, reusing old bolts may result in loss of clamping force, gasket failure, or coolant-oil cross-contamination. Therefore, proper replacement using certified bolts is essential for professional engine rebuilding.

Key Features and Technical Advantages

  • Heat-treated alloy steel structure to withstand continuous thermal cycling

  • High tensile strength rating for heavy-duty compression sealing

  • Precision thread design ensures uniform torque distribution across the engine block

  • OEM-standard elongation and yield characteristics for reliable torque-to-yield installation

  • Corrosion-resistant surface coating to prevent thread seizure and oxidation

Because the head bolt is directly responsible for sealing combustion chambers, even minor loss of clamping pressure may lead to engine overheating, oil leakage, white smoke, or coolant loss.

Compatible Cummins Engine Models

The РМ40004372 cylinder head bolt is commonly used in the following engine platforms:

  • Cummins ISX / ISX15

  • Cummins QSX15

  • Cummins QSM11 (selected configurations)

  • Industrial and power-generation variants

  • Some OEM-branded heavy trucks and equipment using licensed Cummins engines

In Russian-speaking markets, this bolt is often listed as “болт ГБЦ Cummins РМ40004372” or “аналог болта головки блока цилиндров Cummins”, which explains the Cyrillic prefix in the part number.

Symptoms of Failing or Improperly Torqued Head Bolts

If head bolts stretch, loosen, or corrode, the following symptoms may occur:

  • Coolant leaking externally or into cylinders

  • White smoke from exhaust due to coolant burn-off

  • Engine overheating, especially under heavy load

  • Loss of compression and hard starting

  • Oil contamination with coolant or fuel residue

These symptoms often indicate head gasket failure, which is usually caused by incorrect torque sequence, reused bolts, or poor-quality replacement bolts.

Installation and Torque Procedure

Proper installation is crucial for long-term sealing. Although torque values may vary by engine model, the general procedure includes:

  1. Remove old bolts and inspect block and head surfaces for warping.

  2. Clean bolt holes thoroughly to remove oil, rust, or debris.

  3. Use only new torque-to-yield bolts, never reuse stretched bolts.

  4. Lubricate threads if required by Cummins service manual.

  5. Follow the official cylinder head bolt tightening sequence, usually in multiple torque stages + final angle turn.

  6. Perform post-installation retorque if specified for the engine series.

Failing to follow OEM torque instructions may lead to head distortion or gasket blowout.

OEM vs Aftermarket Options

Both genuine Cummins and premium aftermarket bolts exist in the market. OEM bolts guarantee correct metallurgical composition, while high-quality aftermarket versions provide cost-efficient solutions for fleet rebuilding.

When selecting replacement bolts, always consider:

  • Tensile strength certification and batch traceability

  • Hardness and heat treatment specifications

  • Thread precision and anti-corrosion coating

  • Supplier quality control and warranty terms

Because head bolts are safety-critical components, extremely cheap copies without testing data should be avoided.

Why Choose Us as Your Supplier

  • Full range of Cummins fasteners including head bolts, main bolts, and connecting rod bolts

  • Stock available for global shipping and wholesale orders

  • Technical support for part matching by engine serial number

  • OEM & replacement options for ISX, QSX, ISB, ISF, KTA and other Cummins platforms

  • Competitive pricing with professional export packing and documentation

Whether for repair centers, fleet operators, or engine rebuild plants, we provide reliable Cummins spare parts support.

More info about Cummins РМ40004372 Cylinder Head Bolt, please visit our official website:
www.best-cummins.com
