Description

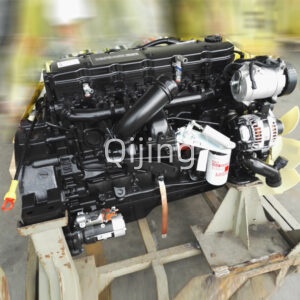

Cummins 6BT5.9-C150 Construction Machinery Engine
| General data of Cummins 6BT5.9-C150 Construction Machinery Engine | |
| Engine Model | Cummins 6BT5.9-C150 |
| Type | 6 cylinder in line |
| Displacement | 5.9 L |
| Bore&Stroke | 102×120 mm |
| Dry Weight | 432 KG |
| Dimension(L*W*H) | 1026*699*912 (mm) |
| Center of gravity from front face of block | 391 mm |
| Center of gravity above crankshaft centerline | 140 mm |
| Technical data of Cummins 6BT5.9-C150 Construction Machinery Engine | |
| Aspiration | Turbocharged |
| Fuel System | A Pump/RSV Governor Regulation 8% |
| Coolant capacity-engine only | 9.9 litre |
| Minimum Idle speed | 750 RPM |
| Maximum Speed(10% rated load) | 2700 RPM |
| Compression ratio | 16.8:1 |
| Piston Speed | |
| Firing Order | 1-5-3-6-2-4 |
| Performance Date of Cummins 6BT5.9-C150 Construction Machinery Engine | |
| Rated Output | 110KW/150HP |
| Rated Speed | 2500RPM |
| Max Torque/Speed | 565N.m/1500RPM |
| Torque/Rated Speed | 428N.m/2500RPM |
| Minimum Fuel Consumption/speed | 217g/KW.h/1700RPM |
| Maximum Fuel Consumption/speed | 242g/KW.h/800RPM |
| Fuel Consumption/rated speed | 238g/KW.h/2500RPM |
The above is general technicial information of Cummins 6BT5.9-C150(2500RPM) industrial application Engine. It is also for us to supply the Cummins 6BT5.9-C150(2500RPM) genuine parts and engine units with clutch ASSY.
